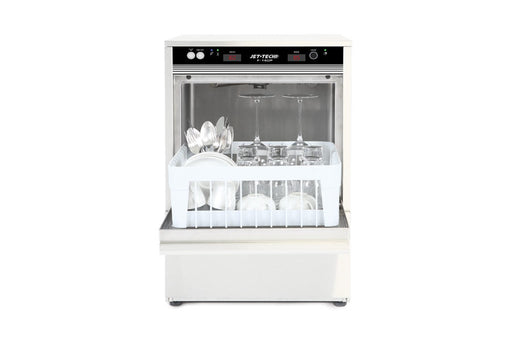

Jet-Tech F-16DP Undercounter Dishwasher, High Temp - 24 Racks Per Hour

SKU F-16DP
Save $1,081.62 Save $1,081.62
Original price $5,090.00
Original price $5,090.00 - Original price $5,090.00
Original price $5,090.00
Current price $4,008.38
$4,008.38 - $4,008.38
Current price $4,008.38
trust

PRODUCT DESCRIPTION AND SPECIFICATIONS

Jet-Tech F-16DP Undercounter Dishwasher, High Temp - 24 Racks Per Hour

The Jet-Tech is a leading producer of high-quality, efficient ware-washing equipment for professionals who seek premier performance and value. Our comprehensive product line is designed to meet the highest standards of excellence in the industry.

Standard equipment includes:

  • One 16 compartment (4x4) angled section glassware rack
  • One open combination rack for cups, bowls, and assorted wares

Optional Accessories:

  • Pressure reducing valve (PRV) kit
  • Drain water tempering kit

Connecting your new F-16DP

This glasswasher must be installed on a level, rigid, nonflammable surface. Ensure that the machine is level by installing the feet (shipped in the wash tank of the machine) and adjusting the leveling. Be sure to provide adequate space for water, drain and electrical connections.

Water Supply

A 3/4" NPT fitting is required with 30 psi. dynamic pressure. A water pressure regulator* may be required. The water pressure cannot be less than 30 psi or exceed 30 psi. If the water pressure exceeds the prescribed amount, you will get inconsistent washing temperature, premature failure and thus may void the warranty.

Incoming water temperature must be 140°F (60°C). An easily accessible shut-off valve is recommended, making installation, servicing and maintenance easier.

Make sure that the water is free from calcium and hard water deposits. For these situations, an inline water cartridge system is highly recommended. Build-up of calcium and lime deposits in the washer may occur and servicing will be required on a more frequent basis which will not be covered by the warranty.

Drain

F-16DP: This glasswasher is equipped with an automatic drain pump that will pump the drain water to a maximum height of 36" (0.9 meter). Drain pump equipped machines have a white button on the control panel beside the green power button.

1" ID flexible drain hose is provided to facilitate maintenance and servicing of the machine. It is important not to reduce the size of this hose. A 1" check-valve* may be required.

Electrical

A 208-240 volt, 60 HZ, Single Phase circuit is required for this unit. Check the rating plate on the machine for amp draw. In spite of the fact that the rating plate shows 208 volts, the unit is designed function properly on 208 volts to 240 volts.

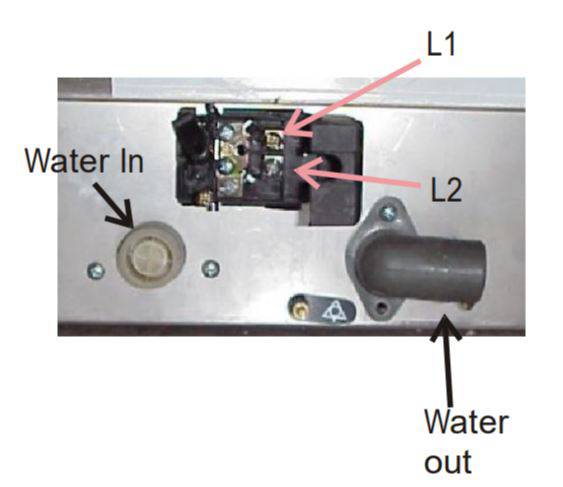

The terminal block is located at the back of the machine. Open the plastic cover, pass the cable strain relief and connect the wires to the L1, L2 & Ground. There should be sufficient cable length to permit the machine to be pulled out for service. DO NOT turn on the power to the machine until the water supply & drain lines have been connected. DO NOT manually fill wash tank. It will fill automatically.

Important Note

Reasonable access to and around the machine for service must be provided. Disconnecting of hard plumbing or removal of counter tops or cabinets, etc., for servicing is not covered by warranty.

All panels must be replaced on the unit when the installation is completed.



  • Built-in booster for superior sanitation
  • Fully automatic program with wash phase at 150F and final rinse phase at 185F
  • Capacity: 24 racks per hour
  • Sanitary labyrinth door elimates need for gasket
  • Stainless steel wash and rinse arms
  • Built-in rinse-additive and detergent pump for sparkling results
  • Built-in automatic drain pump for ease of installation
  • Body external housing, wash tank, and all chassis components in brushed stainloess steel 304 18/10
  • Noise 58 dBa due to utilization of double-wall insulated panels
  • Upper and lower wash and rinse revolving arms constructed of stainless steel; easy to remove and clean without the need for tools
  • Intergrated AISI 18/10 stainless steel booster with insulated lining
  • Safety micro-switch on the door to interrupt wash pump action
  • Independently-operated heating elements alternating between booster and wash tank
  • Alternating heating resistors reducing maximum absorption thereby reducing energy costs
  • Possibility of built-in or free-standing installation
  • Standard insulated top and side panels
  • Wash pump protected with filter plus additional filter for overflow tube
  • Door-opening with overall clearance of 10" (25cm)
  • Protective stainless steel shield for wash tank element
  • Automatic fill and water level regulation of the wash tank
  • Slide out intergrated front control panel provide easy access for service
  • Individual digital gauges for both wash and rinse temperatures

1 year parts and labor.

Specifications
Equipment Type Glass Washers
Brand Jet-Tech
Rack capacity 15.75" x 15.75" (400 mm x 400 mm)
Complete operating cycle 145 seconds wash and 15 seconds rinse
Wash tank capacity 3.0 U.S. gallons (11 litres)
Wash tank element 2000 watts
Wash tank temperature 150°F (65°C)
Booster capacity 0.79 U.S. gallon (3.0 litres)
Booster element 2400 watts
Booster (water) temperature 185°F - 194°F (85°C - 90°C)
Power supply 208-240/60/1
Amperage 12.9 amps
Motor-pump 0.5 HP with thermal overload protection
Maximum power rating 2600 watts
Water consumption 0.53 U.S. gallon per cycle (2.0 litres)
Water consumption per hour 15 U.S. gallons (56.7 litres max.)
Water supply 1/2" hot water supply 140°F / 60°C
Recommended pressure 30 p.s.i (dynamic) (PRV may be required)
Water inlet connection 3/4" male hose connector (hose included)
Drain connection 1" ID (25.4mm) max height 36" (915mm) (hose included)
Dimensions
Width 20.25"
Height 29.75"
Depth 20.25"
Shipping Weight 116 lbs.
